Electrical Motor Driver- AC01

FUNCTIONS DESCRIPTION：

1. Speed Regulating by 0-5V voltage or PWMsignal.
2. Speed Feedback: One pulse per rotation.
3. Providing multiple protection functions:overvoltage, undervoltage, overcurrent, locked-rotor protection.
4. Providing fault feedback indication.

Product Parameters

Product Model AC01-24V Brand ANCTRONIC
SPEC ACO1-24V-240W Peak Power 240W
Part Name Motor Driver Rated Voltage 24V
Work Temp 20℃-60℃ Voltage range 14-28V
Humidity ≤80%RH max. continuouscurent 10A
Current limitprotection 12A max peakcurrent 20A
FGSpeed Feedback 5V speed pulse output between FG portand the ground, one pulse per rotation. Commutationmodes HallessCommutation
PWMSpeedRegulation PWM frequency 200Hz, can be adjustedbetween 10%-90%, accordingly motorspeed fromlow to high, less than PWM10% then stop Lock-rotorProtection Y
Size w Casing: 96.0*59.92+24.85(mm)wo Casing: 96.06352*17.5(mm) Startupdagnostics Y
Mass 96g(PCBA: 27g) Forward andreverse control Y
Casing Color Sliver Speed regulationmodes PWMVSP0-5
Customizable Y Control modes Constant SpeedConstant Power

Fault Feedback

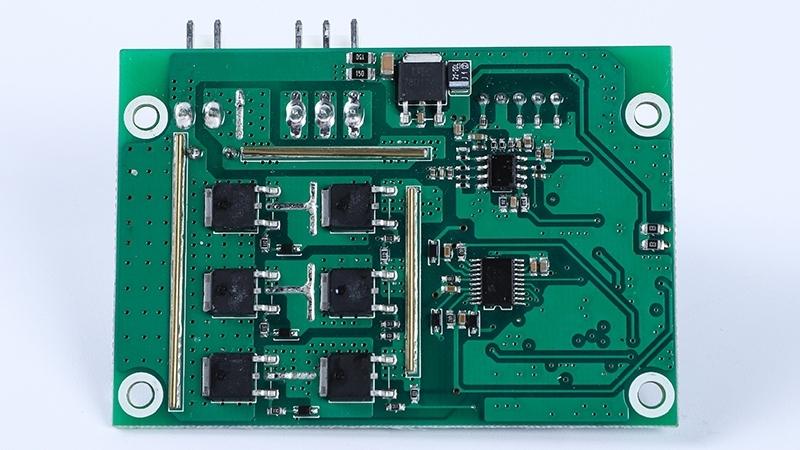

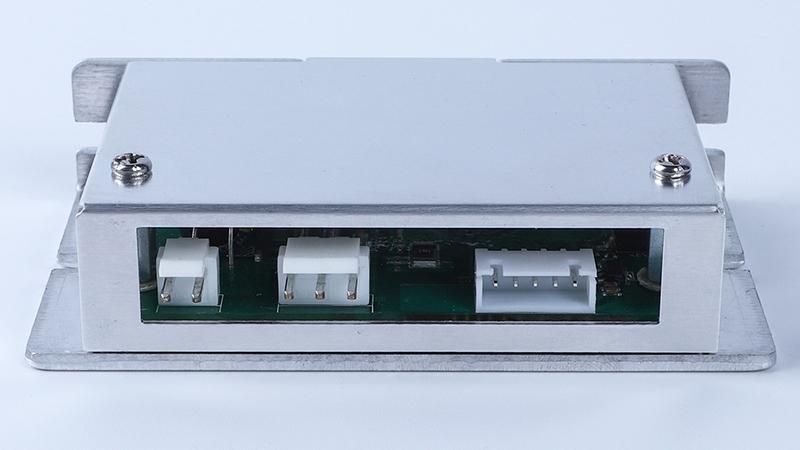

Product Interface - w/CASING:

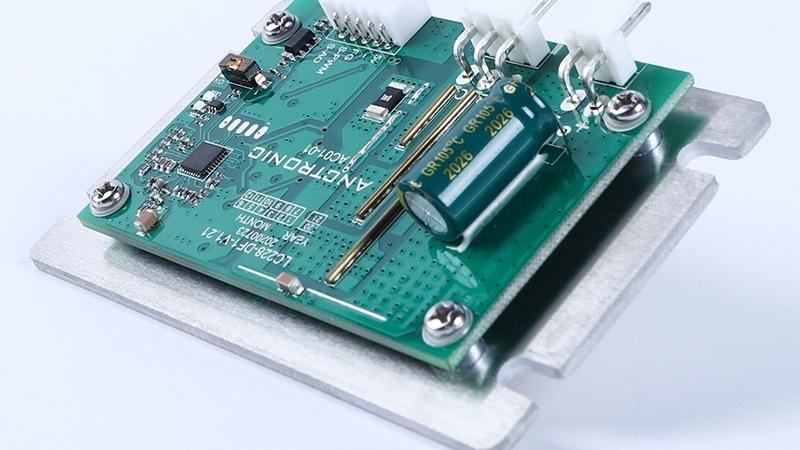

Product Interface - w/o CASING:

Pin Definition
